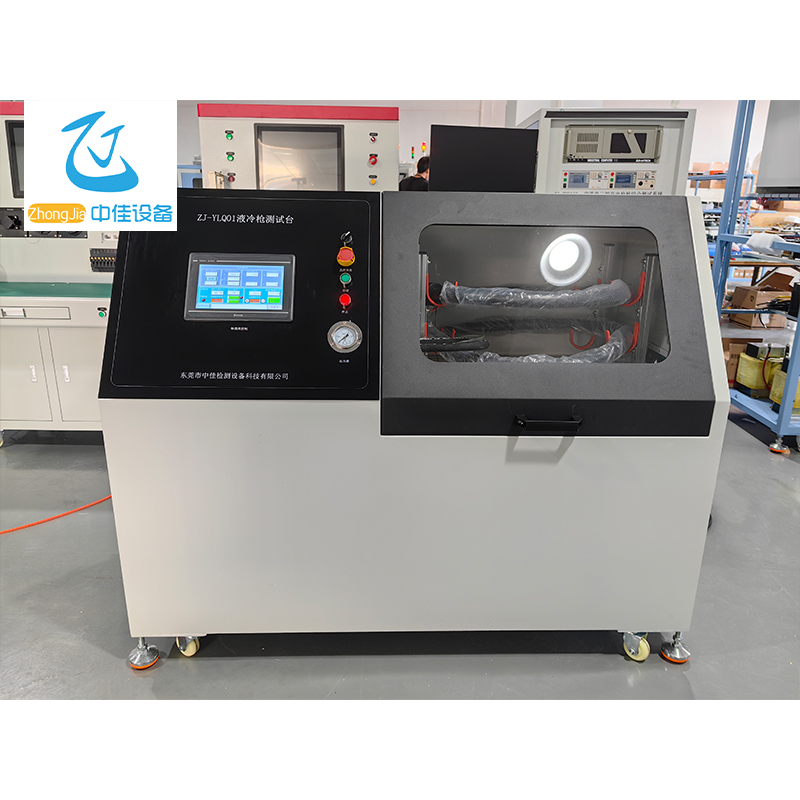

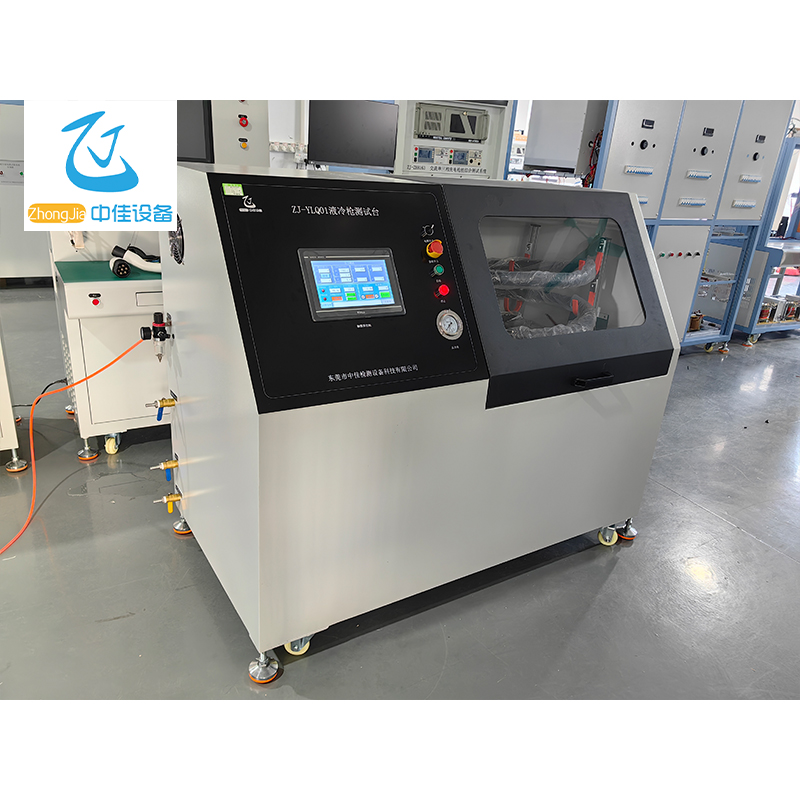

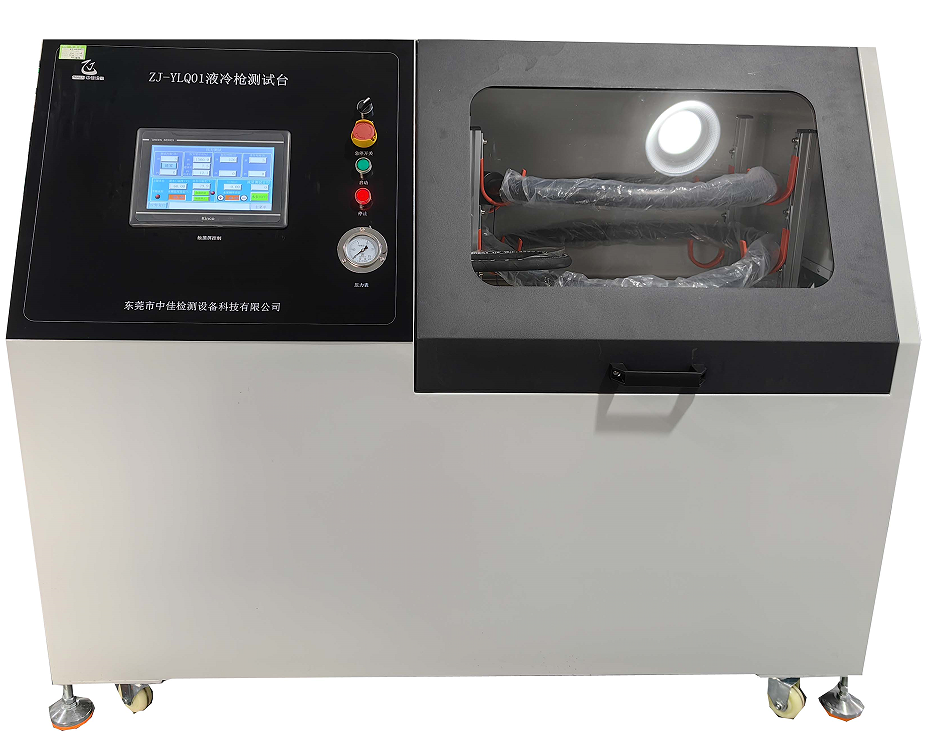

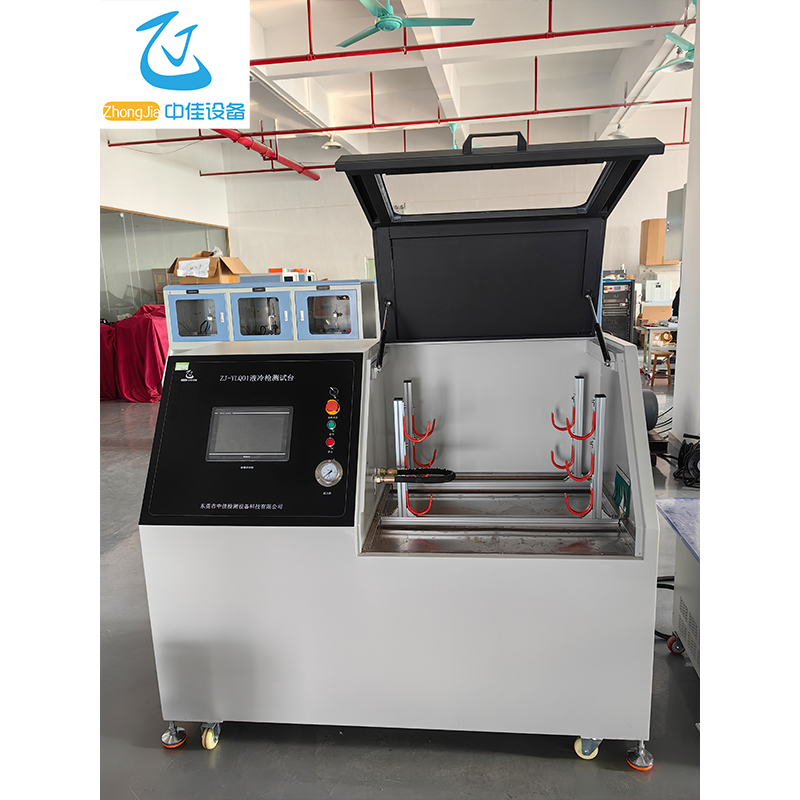

Liquid Cooling Gun Test Bench

ZJ-YLQ01

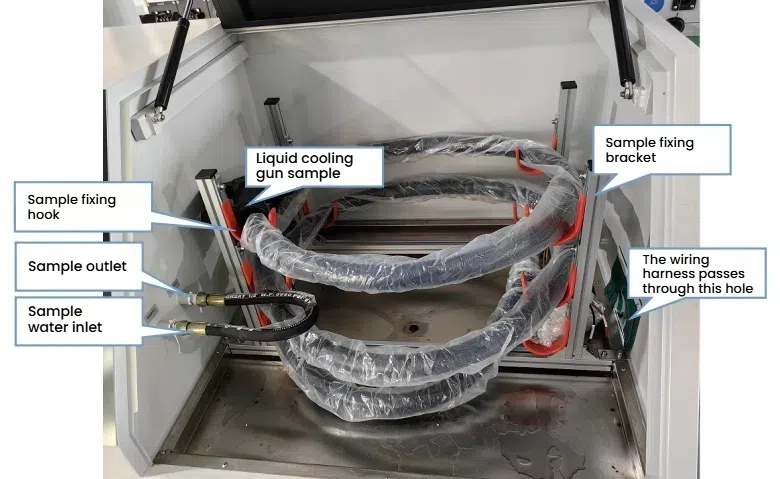

The ZJ-YLQ01 liquid cooling gun test bench is suitable for flow, pressure and temperature testing of the liquid cooling tube of the liquid cooling charging gun, and each function is tested separately.

Consult

Features
Technical Indicators
Overall Dimension


Serial number Parameter Key parameters required 1 Medium temperature control range 15℃~60℃, fixed value control 2 Control flow range 0-10L/mir 3 Flow sensor range 0～1m³/h 4 Flow sensor accuracy ±0.5%F.S 5 Pressure control range 0～2MPA (inlet and outlet pressure) 6 Static pressure control accuracy ±10KPa (after filtering) 7 Pressure sensor range 0-3MPA 8 Pressure sensor accuracy 0.1%F.S 9 Temperature sensor range -20℃~120℃(inlet, outlet, water tank temperature 10 Temperature sensor accuracy ±0.5%F.S 11 Pressure and temperature alarm value range Configurable 12 Fan Selection according to temperature control range 13 Heat sink Selection according to temperature control range 14 Compressor Selection according to temperature control range 15 Plate Heat Exchanger Selection according to temperature control range 16 Water Pump Select according to temperature and flow control range 17 PTC Selection according to temperature control range 18 Electric water valve Selection according to control mode 19 Basic Functions The computer can generate flow curve, pressure curve, temperature curve and display flow, pressure, temperature and other data processing functions. Intelligent temperature control system. 20 Operational The bottom is equipped with universal steering wheels, and the inlet and outlet pipes can be pulled out more than 2m

1	Ambient temperature	5～35℃
2	Ambient humidity	85%R.H 25℃
3	Atmospheric pressure	86～106Kpa
4	Environmental conditions	There is no strong vibration, no strong electromagnetic field interference, no high concentration of dust and corrosive substances, no direct sunlight or other direct radiation from heat sources around the equipment site.


		The equipment should be placed horizontally in a well-ventilated test room, with sufficient space around it for operation and maintenance.
5	Gas source	Compressor available

Serial number	Parameter	Key parameters required
1	Medium temperature control range	15℃~60℃, fixed value control
2	Control flow range	0-10L/mir
3	Flow sensor range	0～1m³/h
4	Flow sensor accuracy	±0.5%F.S
5	Pressure control range	0～2MPA (inlet and outlet pressure)
6	Static pressure control accuracy	±10KPa (after filtering)
7	Pressure sensor range	0-3MPA
8	Pressure sensor accuracy	0.1%F.S
9	Temperature sensor range	-20℃~120℃(inlet, outlet, water tank temperature
10	Temperature sensor accuracy	±0.5%F.S
11	Pressure and temperature alarm value range	Configurable
12	Fan	Selection according to temperature control range
13	Heat sink	Selection according to temperature control range
14	Compressor	Selection according to temperature control range
15	Plate Heat Exchanger	Selection according to temperature control range
16	Water Pump	Select according to temperature and flow control range
17	PTC	Selection according to temperature control range
18	Electric water valve	Selection according to control mode

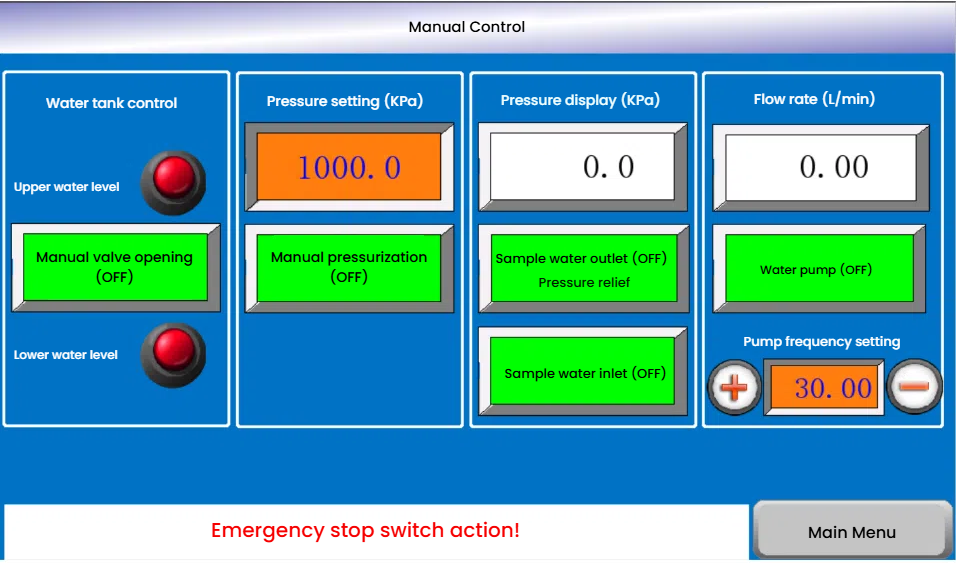

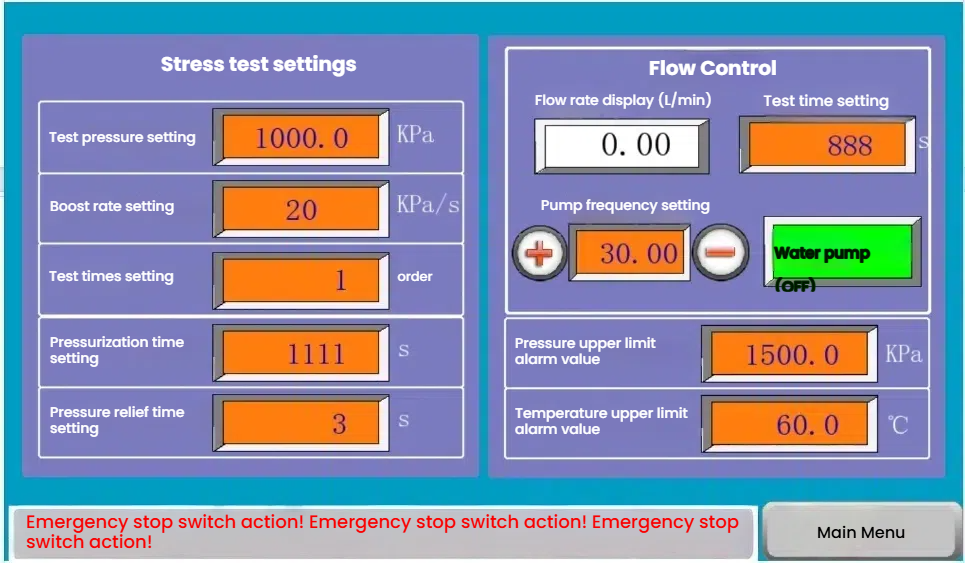

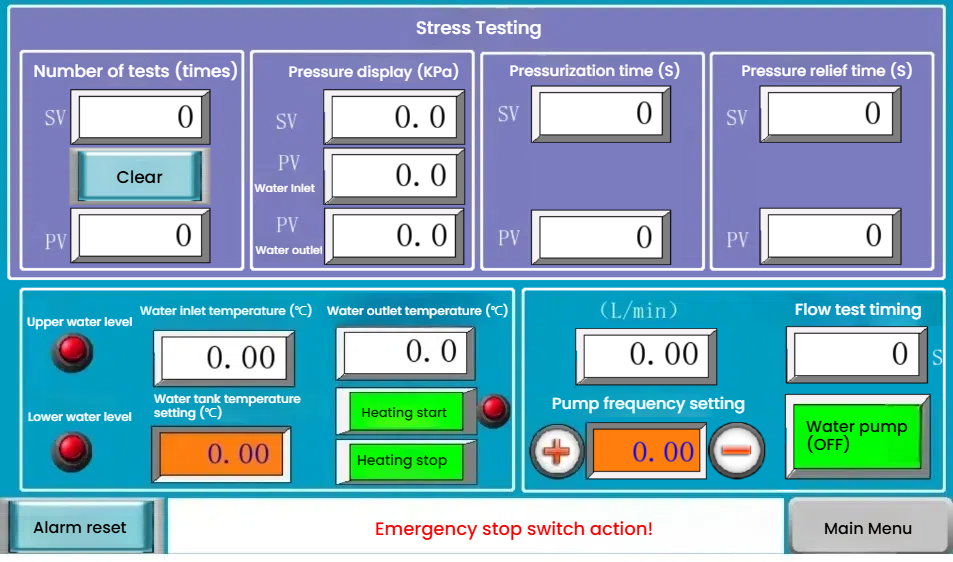

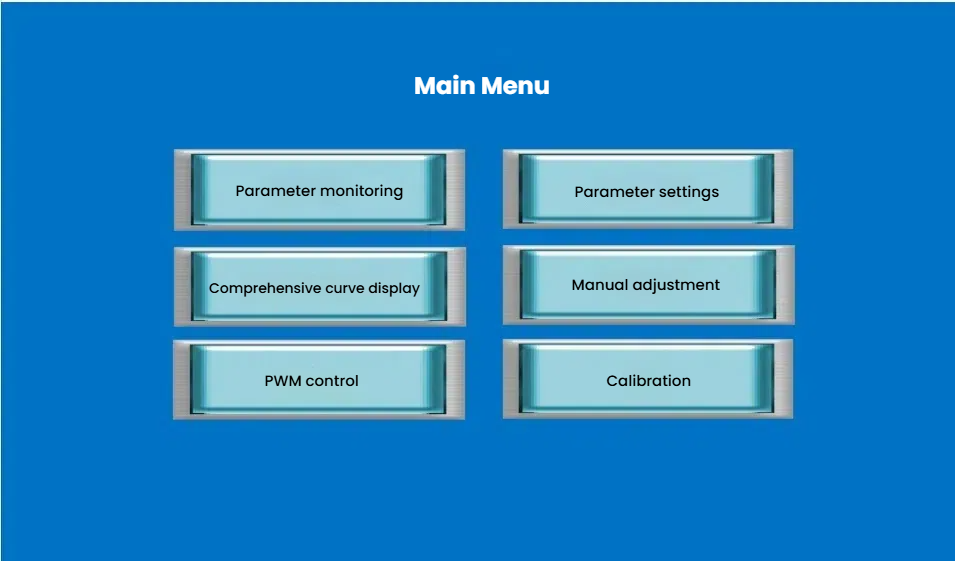

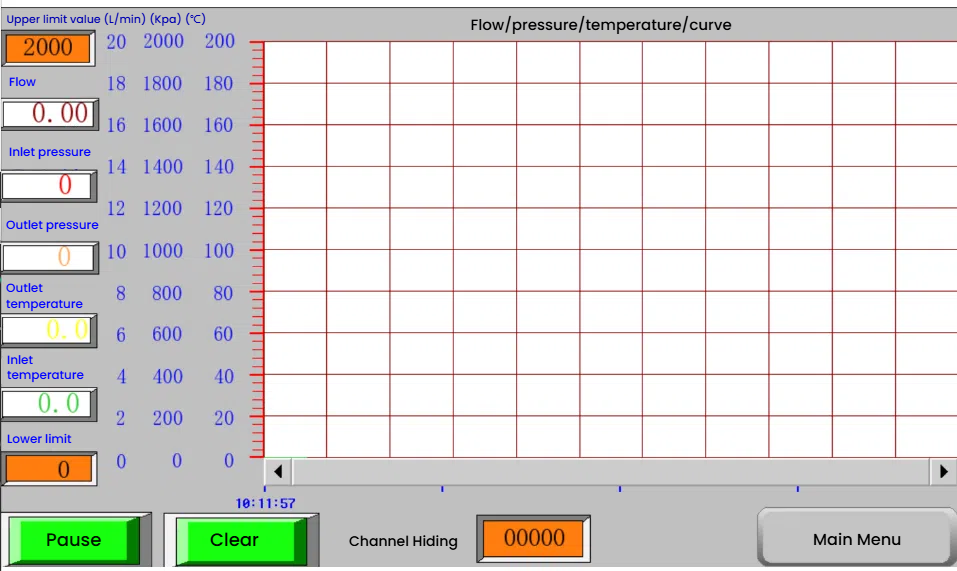

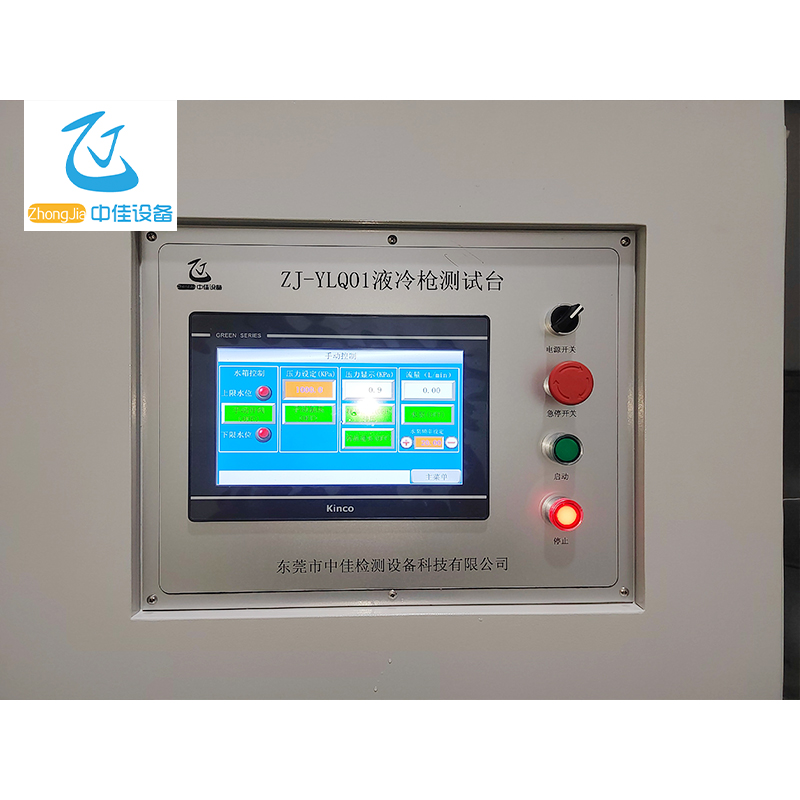

19	Basic Functions	The computer can generate flow curve, pressure curve, temperature curve and display flow, pressure, temperature and other data processing functions. Intelligent temperature control system.

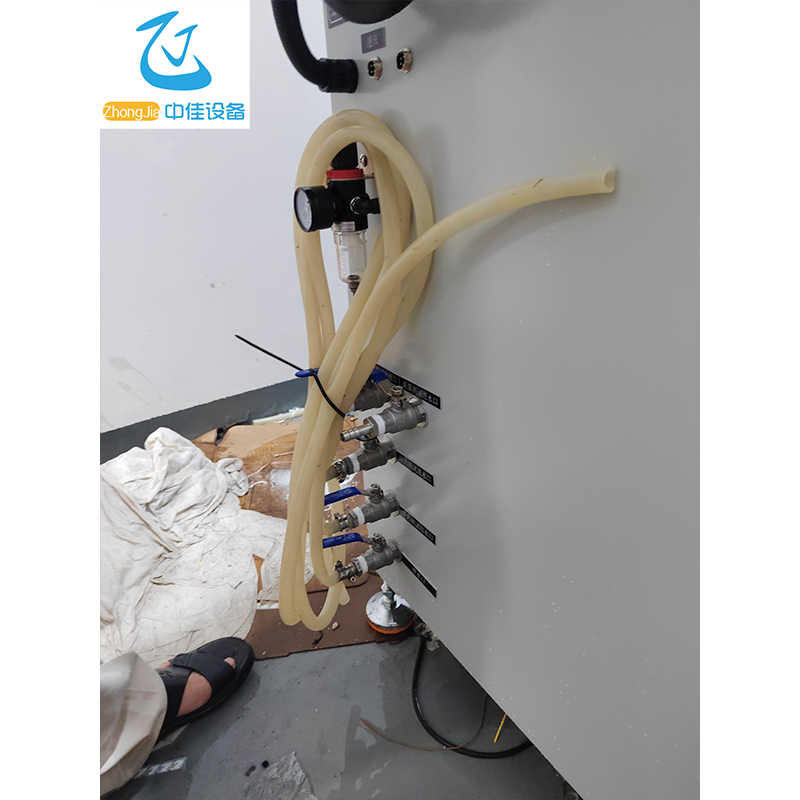

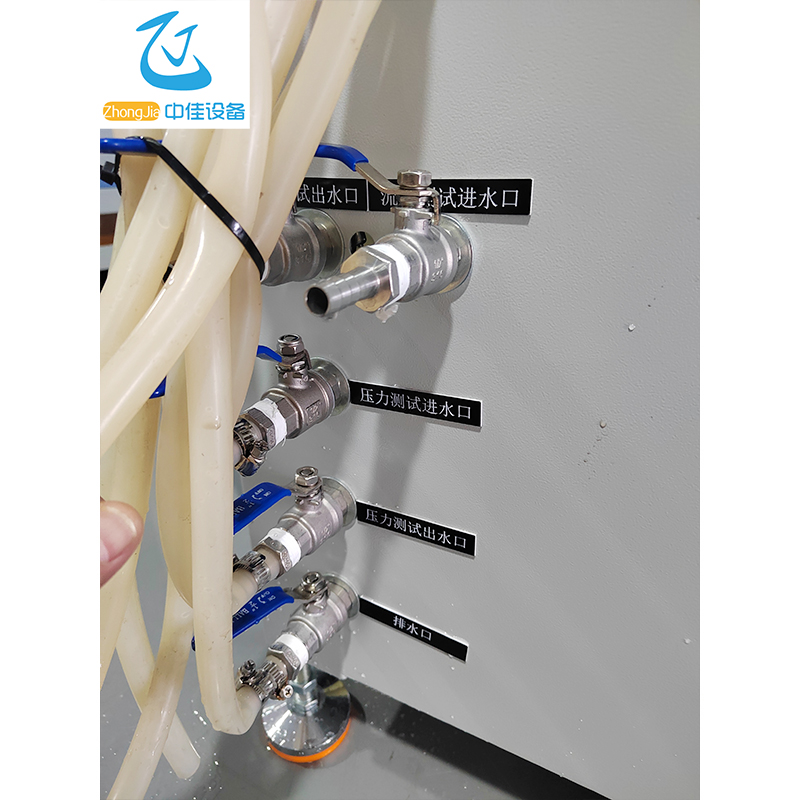

20	Operational	The bottom is equipped with universal steering wheels, and the inlet and outlet pipes can be pulled out more than 2m
