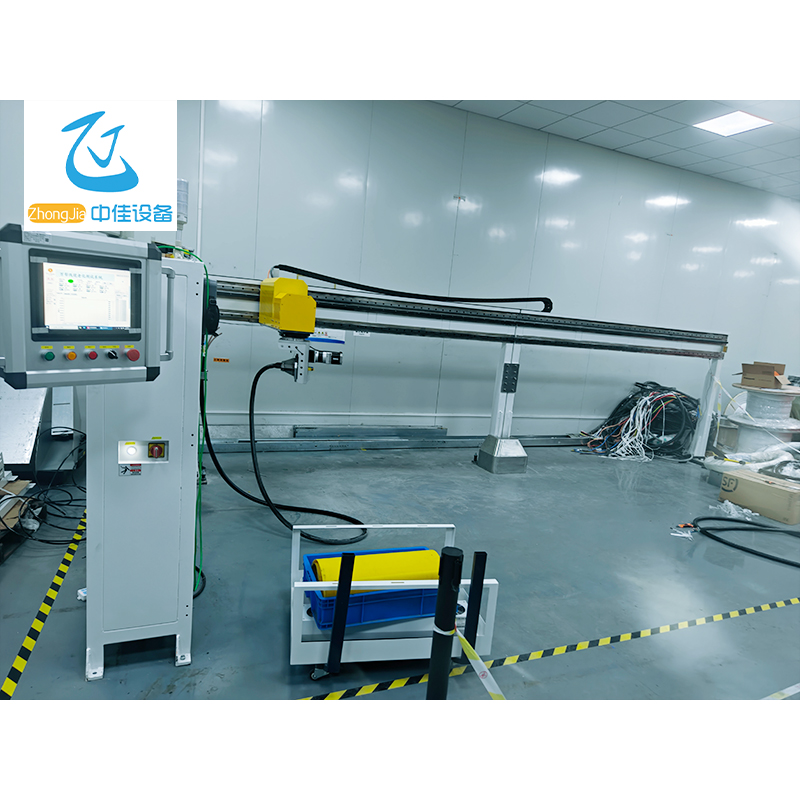

Charging Pile Cable Pull-Torsion Life Tester

ZJ-LNB12
Applicable to new energy cables to simulate the damage under specified rough use conditions, so as to evaluate their fatigue.


Main parameters:
1. Test station: 1 station, horizontal installation (horizontal operation).
2. Sample range: Φ10mm～Φ45mm.
3. Sample length: 5m～12.0m.
4. Stretching speed: 10~500mm/min, adjustable speed.
5. Speed error: 1%.
6. Stretching stroke: 0~2m arbitrarily set.
7. Displacement resolution: 1mm.
8. Displacement accuracy: 1%.

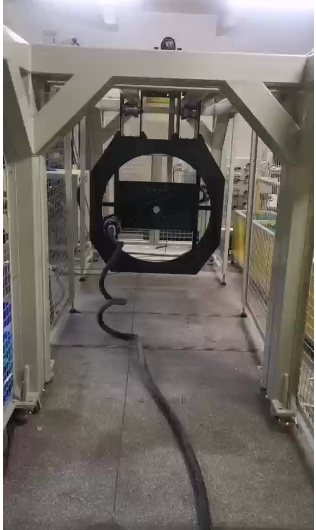

9. Torsion angle: ± N (10°～±360°) arbitrarily set, where N is an integer within 1~10 points.
10. Swing length: 400mm～500mm.

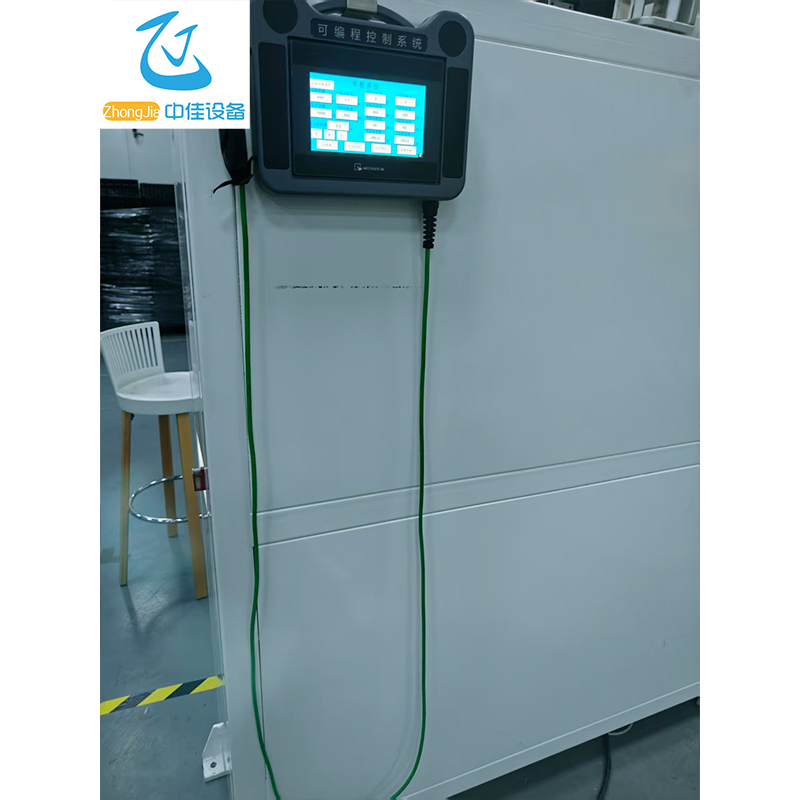

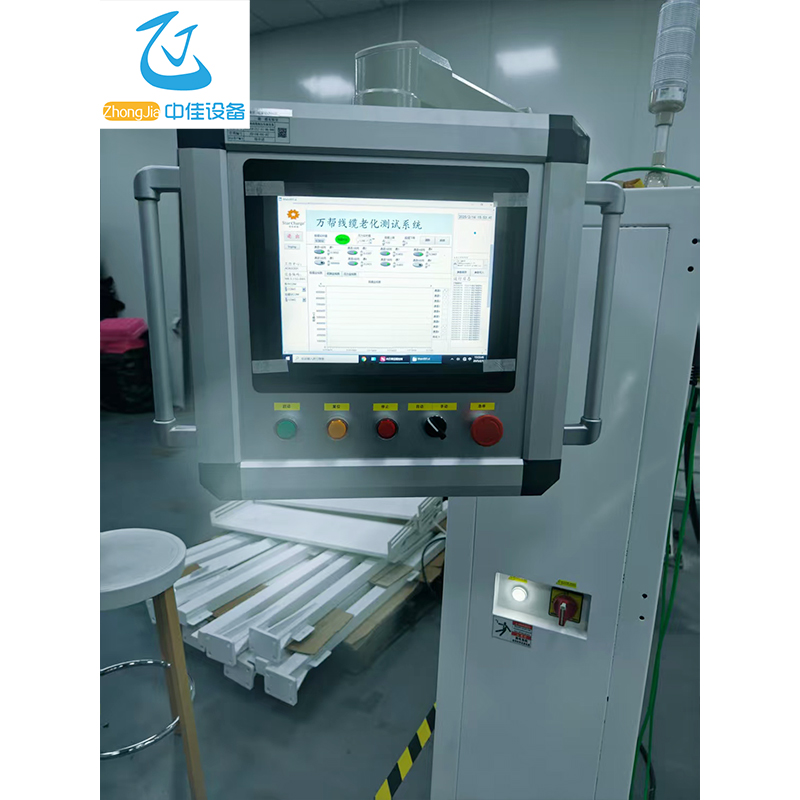

11. Operation interface: 10-inch Weilun touch screen.
12 Control system: Xinjie pLc control

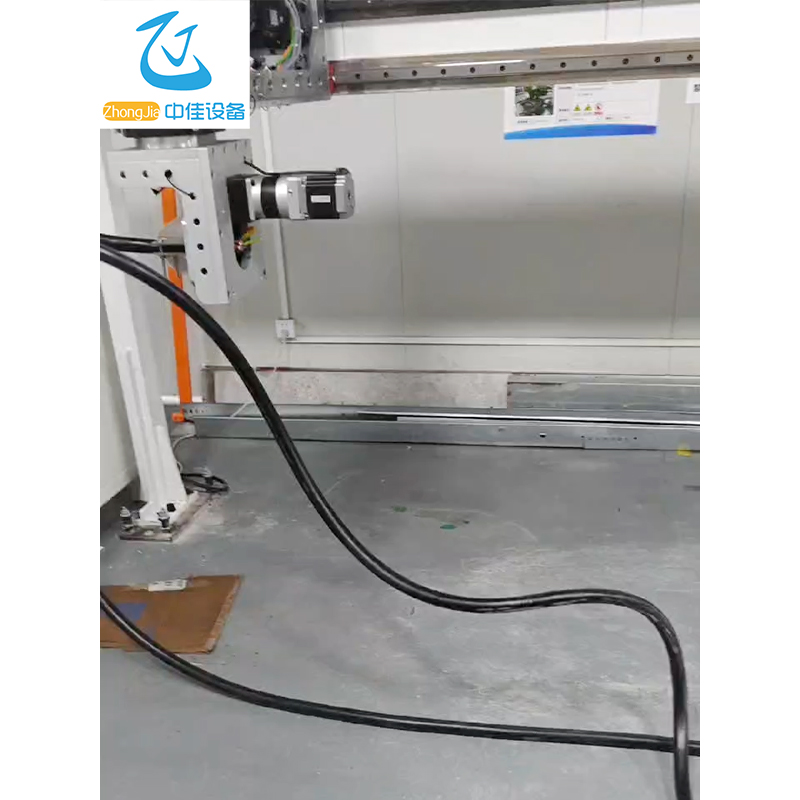

13. Rotation system: Jiemeikang servo motor rotation
14. Counting digits: 1-99999999 times arbitrarily set

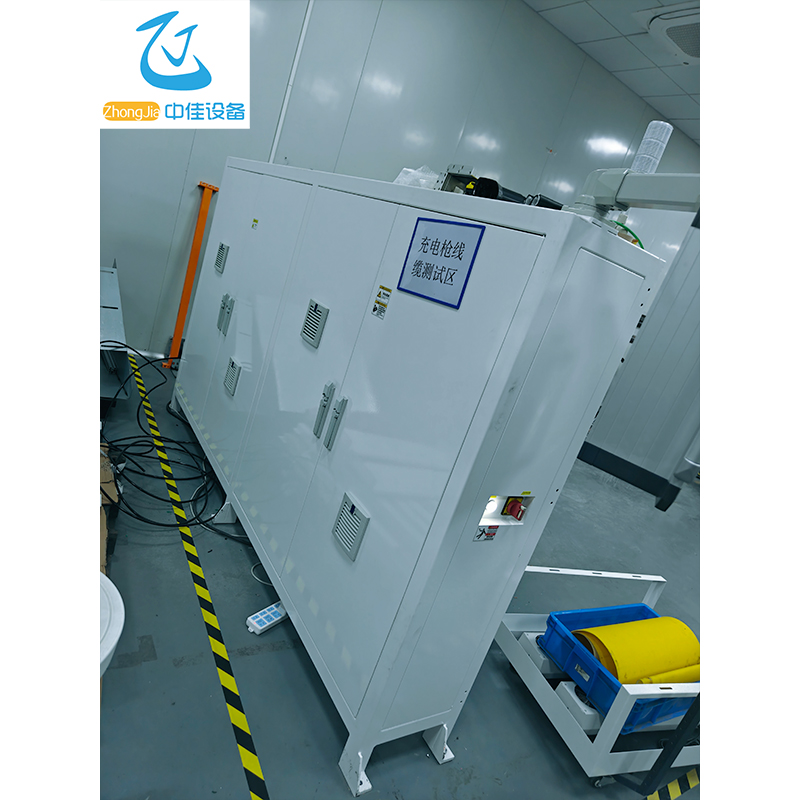

15 Machine material: Adopt 45# high-quality steel sheet metal and square frame structure

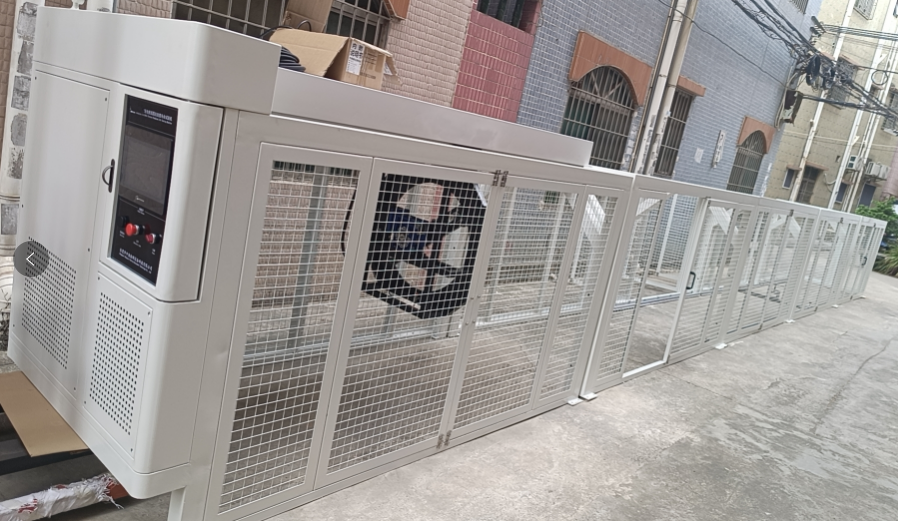

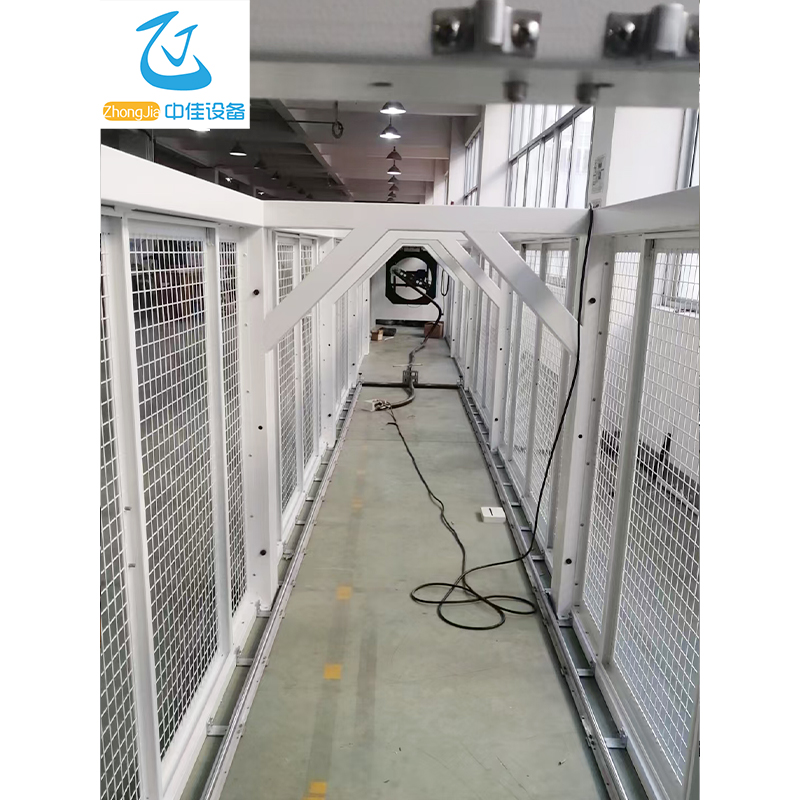

16. Equipment appearance: about 13M long, 1.2M wide, 2M high, subject to mechanical design.

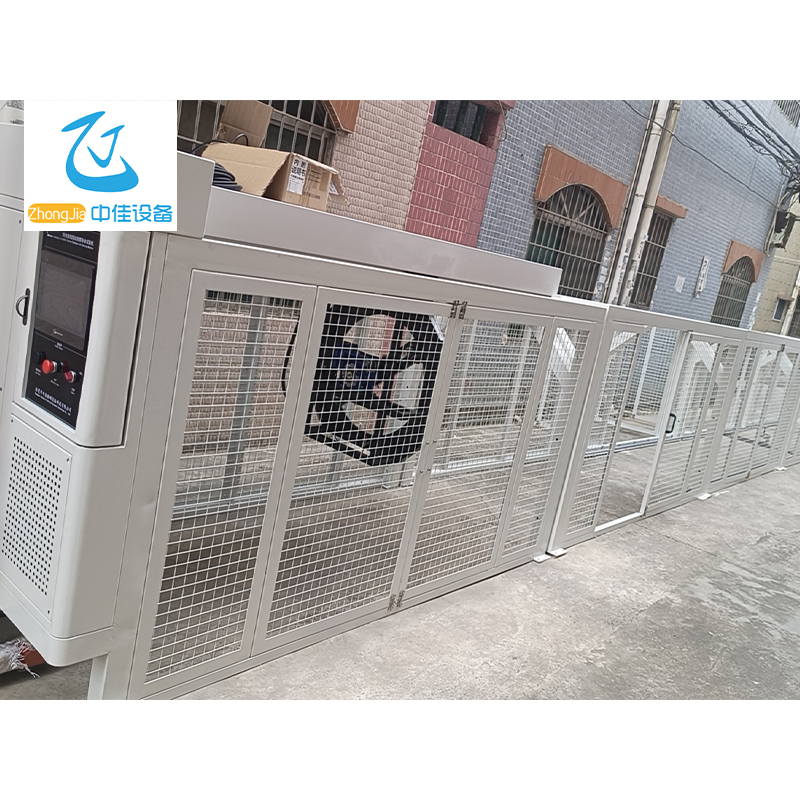

17. Open door: convenient for product installation and clamping

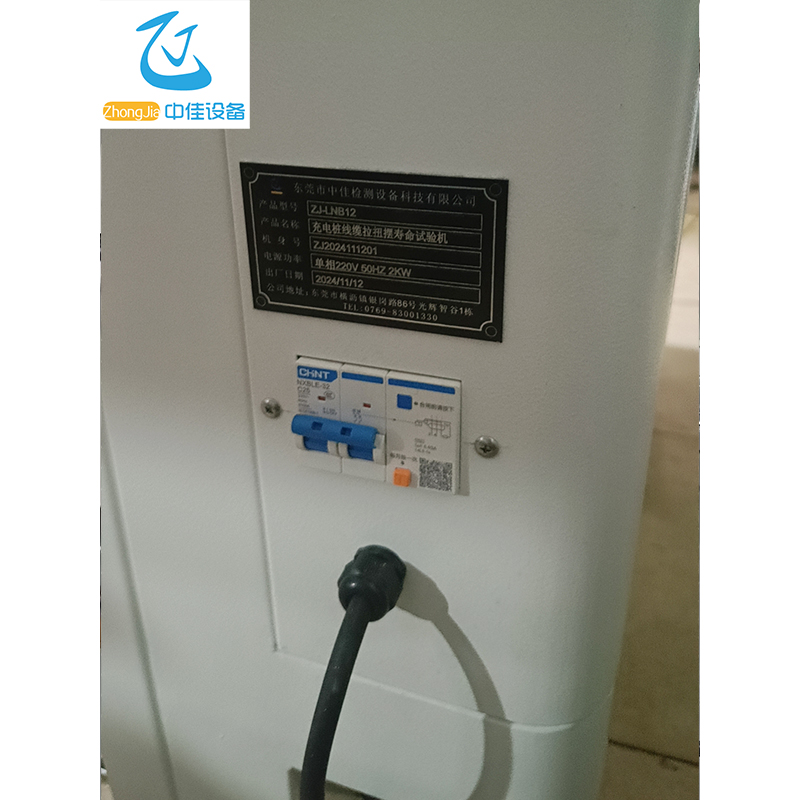

18. Power supply: 220V, 50/60Hz 20A
