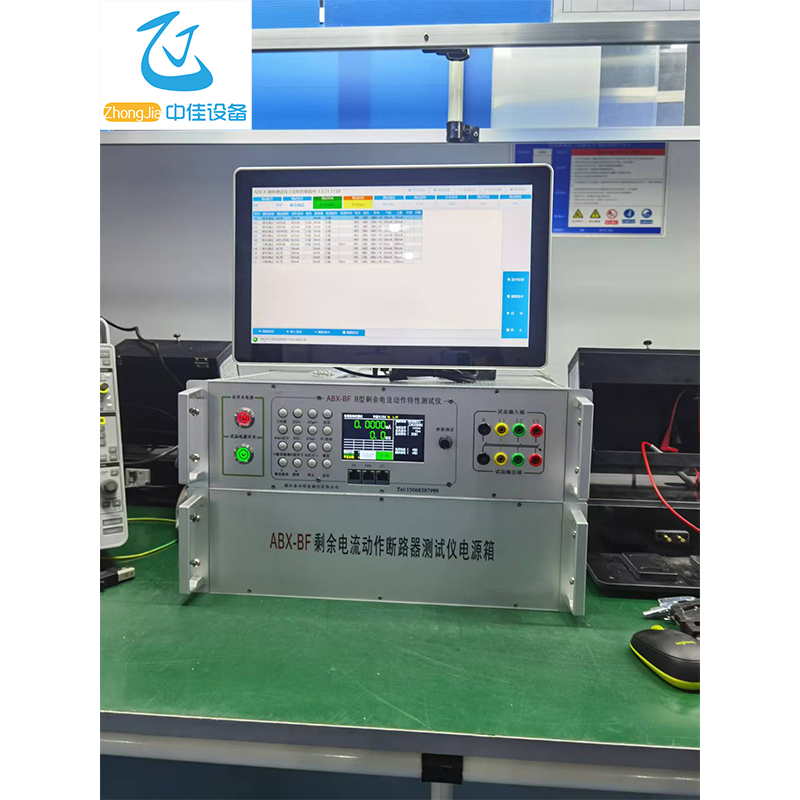

Residual Current Operated Circuit Breaker Tester

Type A/B
The residual current operated circuit breaker tester is a leakage current testing device designed and developed by our company according to the requirements of electronic and electromagnetic leakage products.
The test bench is composed of relays, LCD screens, circuit boards, transformers and other components. It is controlled by a single-chip microcomputer and can automatically test the product according to the selected process. The equipment is easy to operate and has high testing efficiency. It is an ideal equipment for circuit breaker manufacturers to conduct batch rapid testing of circuit breakers. It is controlled by a single-chip microcomputer and can automatically test the product according to the selected process. The equipment is easy to operate and has high testing efficiency. It is an ideal equipment for circuit breaker manufacturers to conduct batch rapid testing of circuit breakers.

Consult

Features
Technical Indicators
Overall Dimension

Main scope of application
A. New energy electric vehicle charging industry
Complies with IEC/GB standards:
IEC62423/GB22794 B-type and F-type residual current performance test requirements.
IEC62752/NB T42077 IC-CPD residual current performance test requirements.
Applicable to IC-CPD, PCBA and transformers in production sites and R&.D laboratories
Complies with relevant provisions of national standards GB 16916.1, GB16917.1, GB22794:
B. Traditional low-voltage electrical industry
Complies with IEC/GB standards:
IEC60947/IEC61008/IEC61009 and
GB14048/GB16916/GB16917 standards on A-type and AC-type residual current performance test requirements.
IEC62423/GB22794 B-type and F-type residual current performance test requirements.
Applicable to electrical equipment in production sites and R&.D laboratories =Sub-/electromagnetic RCDs, PCBA and transformers
C. Photovoltaic industry
DC residual current performance test.
Applicable to DC residual current function test in production sites and R&.D laboratories
Usage conditions
1. Temperature: (10-35)℃, and the 24-hour daily average temperature does not exceed 35℃.
2. Relative humidity: When the temperature is below 25℃, the maximum relative humidity is 80%. when the temperature is 40℃, the relative humidity decreases linearly to 50%.
3. Pollution level: Level 2.
4. Altitude: The altitude of the use site does not exceed 2000m.
5. Workplace: There should be no obvious mechanical vibration, no large amount of dust and corrosive gas, no strong electromagnetic interference and other radiation interference around.
6. Air pressure requirement: 0.5-0.8MPa.
1. Working power supply: AC 380V× (1±10%) 50Hz 2. Output current: 7A (this is the AC type output current, other types of current are proportionally reduced) 3. Maximum current output frequency: 1K (Hz) 4. Insulation resistance: ≥10MΩ 5. Production rhythm: according to the project selected by yourself 6. Equipment compatibility: compatible with various product types 7. Current waveform: Type B (including DC superposition waveform, two-phase rectification waveform, three-phase rectification waveform, smooth DC, high-frequency sine wave and composite wave) 8. Type A (pulsating DC 0°, 90°, 135°) AC type (industrial frequency sine wave) 9. With unqualified prompt function 10. Output voltage: phase voltage AC 50V, 110V, 187V, 220V, 11.242V, fixed step output, resolution: 0.1V, accuracy level: 1.0 level. 12. AC type 50Hz AC residual current: 2mA-7A, continuously adjustable, accuracy level: 0.3 13. A type half-wave pulsating residual current: 14.0 degrees: 5mA-6A 90 degrees: 5mA-4A 135 degrees: 5mA-2.5A, accuracy level: 2.0 15. High-frequency sine wave residual current: 2mA-7A, frequency 100-1K, (each 50Hz is a level), accuracy level: 0.3 17. Smooth DC current: 2mA-7A Accuracy level: 0.5. 18. Composite wave: 2mA-7A Accuracy level: 0.5 19. Self-provided computer 20. Leakage tester The leakage tester is mainly composed of DSP28335, FPDA, AD9954 digital frequency module, Main core parts: DSP28335 chip DSP28335 uses 32-bit floating point numbers and a main frequency of 150MHz. The practical development board adopts the core board and split mode. DSP28335 has 34k*16-bit single-cycle single-access random access memory SRAM, which is divided into 10 blocks, respectively M0, M1, L0-L7. There are also 256k*16-bit embedded FLASH memory and 1k*16-bit one-time editable EEPROM memory, which are protected by user passwords. AD9954 digital frequency module: using advanced technology, built-in a high-performance DAC, forming a complete digital programming, high-frequency synthesizer can generate up to 150MHz agile analog output sine wave. It can realize fast frequency hopping, and also has precise frequency adjustment (0.01Hz) and phase harmonics (0.022 degree interval) with a default program of 1Hz. The device has built-in static RAM, supports scanning functions in multiple modes, and supports user-defined linear scanning working mode.
