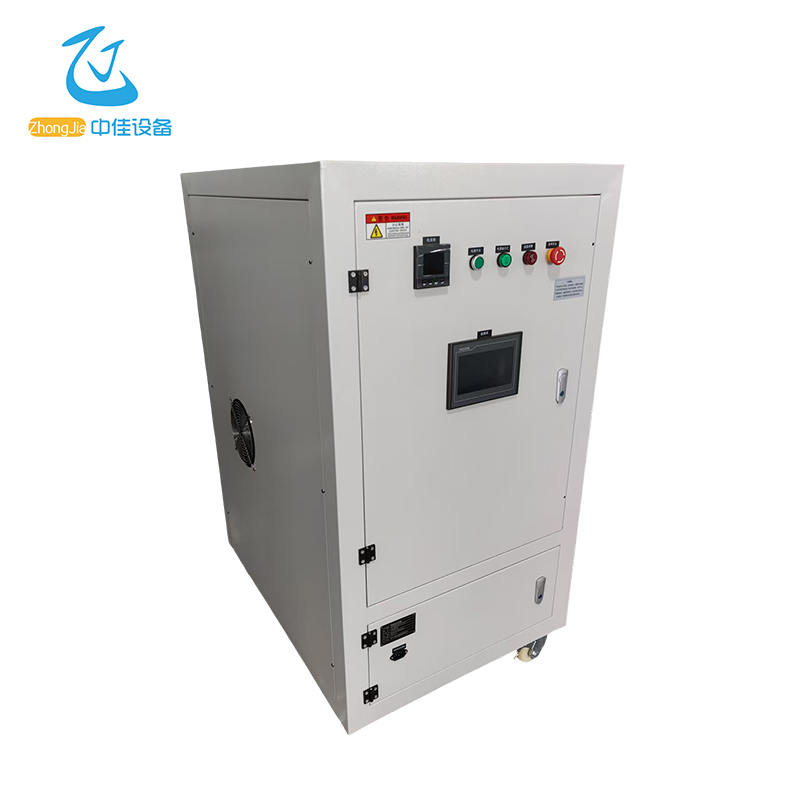

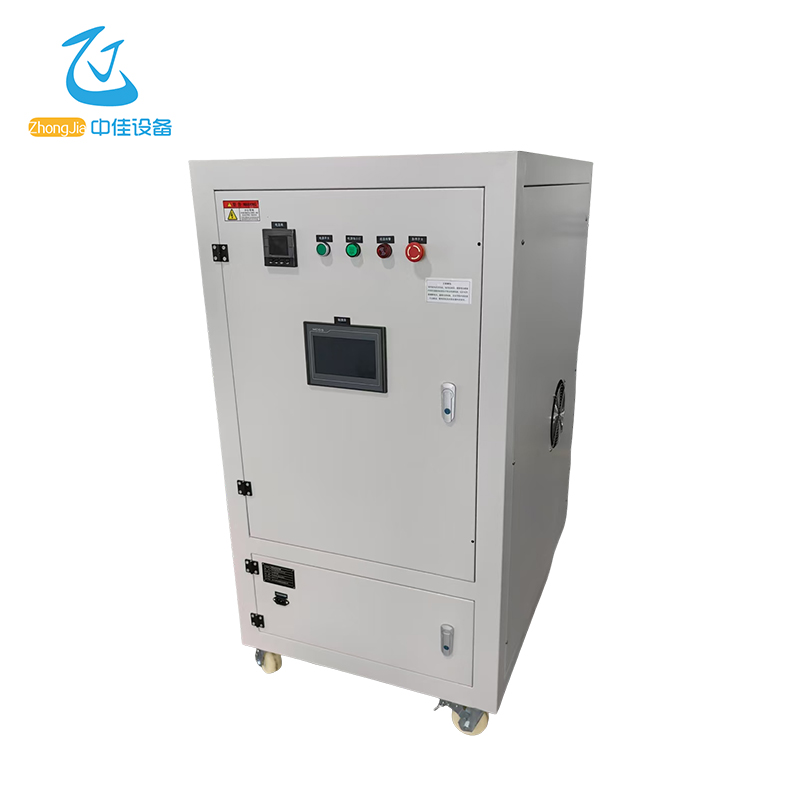

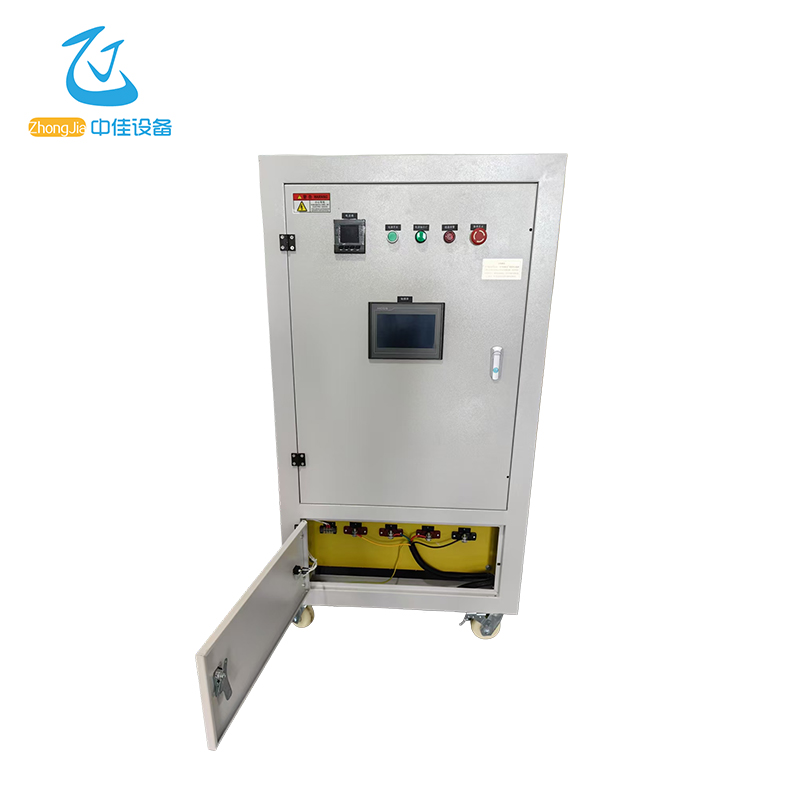

Three-phase AC Flow Control Load Box

ZJ-AC240V64A
The three-phase AC flow control load box has a built-in pure resistive load, which can be adjusted from 1A to 64A within the range of 200V to 240V. It can simulate various power loads in any combination to meet the needs of full-load detection of charging piles. It is an essential detection tool for production workshops, laboratories, installation and debugging, and scientific research and development.

Consult

Features
Technical Indicators
Overall Dimension

●The control mode is local + remote control. ●PLC control, power loading through the host computer software. Flexible scalability ●The system has flexible scalability, which is convenient for future station and power increase and protects existing investment. ●The load box can be used in parallel, and the operation is convenient and reliable. High reliability stability ●The internal carrier adopts alloy resistor, which is small in size, good in heat dissipation, strong in load capacity, strong in impact resistance and high in stability. It can ensure the quality of the product and long-term continuous working performance. Strong overload capacity ●Load part: The load is a long-term working system and can work continuously for 24 hours. 5 times overload, 5 seconds, the carrier has no damage. ●Within 30 minutes, the load is 1.2 times the load without any damage.
(1) According to the performance parameter detection requirements, the corresponding power can be controlled and set, and the discharge power can be set in any combination.
(2) Load box classification: 200-250V per phase. 1-64A adjustable, minimum step 1A.

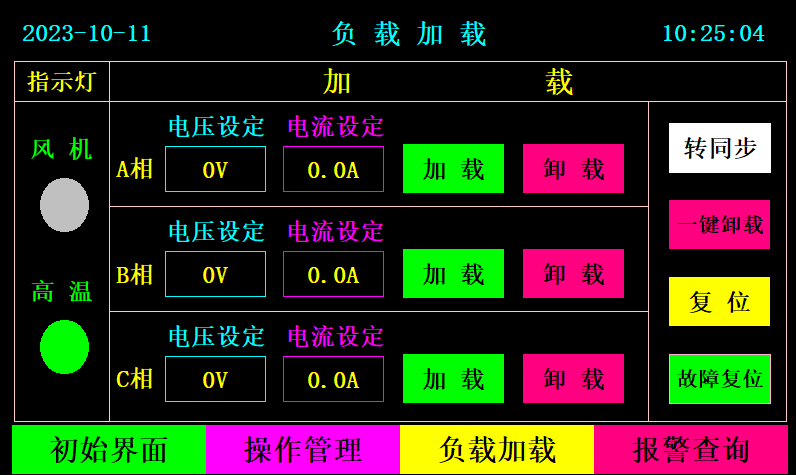

(3) LCD panel can simultaneously display the voltage, current and power parameters of each phase.
(4) The analog load should use low temperature drift (temperature coefficient <.250ppm), high reliability and accuracy components, and the loading accuracy should meet the relevant requirements of HB6492.
(5) The power input is controlled by a segmented switch. The load works in an energy-consuming manner, and the heat dissipation adopts a forced air cooling method.

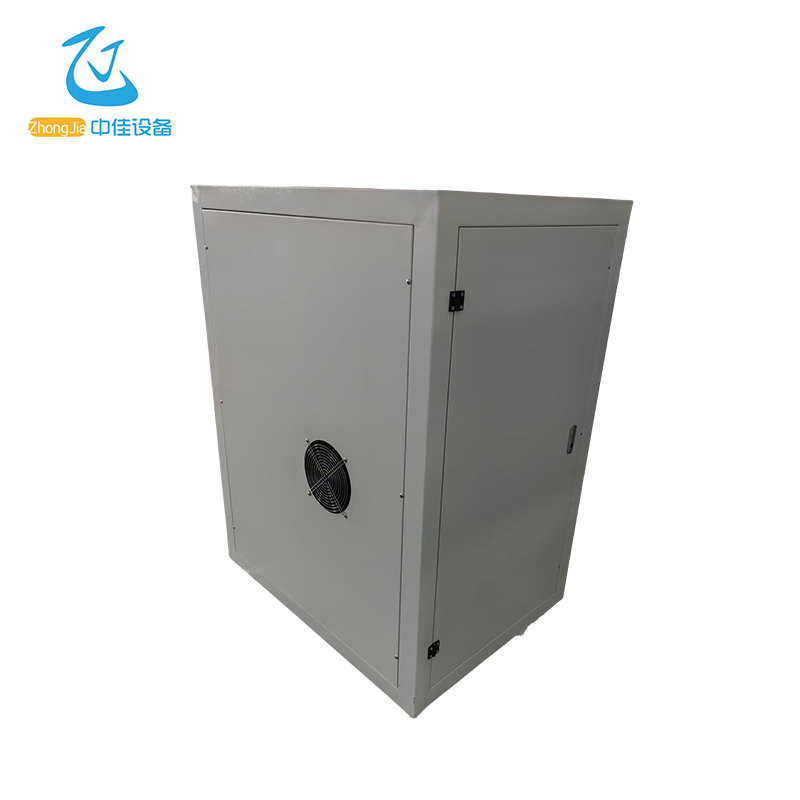

(6) The fan adopts a large axial flow fan, which has the characteristics of large air volume, good heat dissipation and low noise.
Equipment technical parameters
Rated voltage
AC200-250V .50HZ
Rated power
1A-64A adjustable, total power 48KW.
Rated frequency
50HZ
Power Classification
Each phase is adjustable from 1 to 64A, with a minimum step of 0.1A.
Power Factor
PF=1
Load accuracy
1-3%
Display accuracy
Level 0.5
Control method

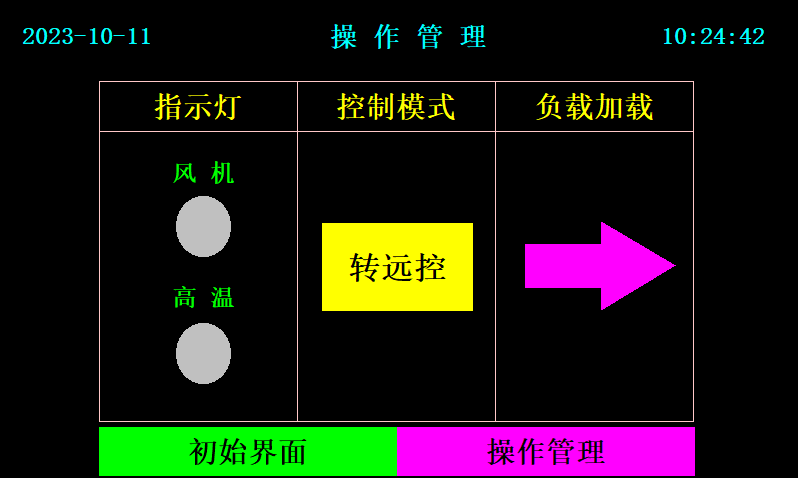

Local touch screen + remote control
Communication protocol MODBUS RTU
Control switch
Power switch/gear switch/emergency stop switch
Working power supply
Single phase AC220V/50HZ
Voltage display accuracy
The voltage accuracy is ±1% and the voltage resolution is 0.1V.
Current display accuracy
The current accuracy is ±1% and the current resolution is 0.1A.
Display content
Voltage/current/power and other parameters
Insulation class
F-Class
Protection level
IP20 (suitable for indoor use)
Fan noise
60 dB
Cooling method
Forced air cooling: air is sucked in from the bottom and discharged from the top.
How it works
Can work continuously for more than 24 hours.
Protection function

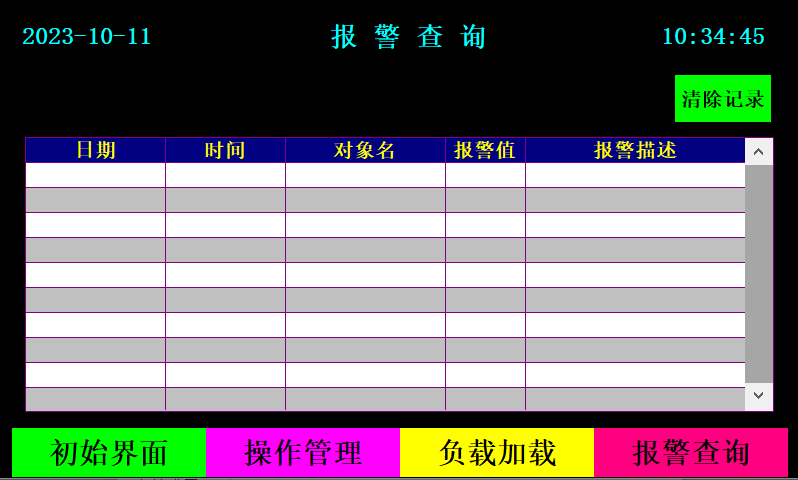

Short circuit protection/over temperature protection/over current protection
External dimensions
1200*650*750mm (height*width*depth)
Weight
140KG
Applicable ambient temperature
-10℃～+50℃
Applicable relative humidity
≤95%
Altitude
≤2500m
Main components
Resistance
It uses alloy resistors with good heat dissipation, small temperature drift and power factor above 0.99.
Related electrical appliances
The default brand is Chint. If there are special needs, the brand can be defined through negotiation.
Product Warranty
One-year warranty and lifetime maintenance.

Equipment technical parameters
Rated voltage	AC200-250V .50HZ
Rated power	1A-64A adjustable, total power 48KW.
Rated frequency	50HZ
Power Classification	Each phase is adjustable from 1 to 64A, with a minimum step of 0.1A.
Power Factor	PF=1
Load accuracy	1-3%
Display accuracy	Level 0.5
Control method	Local touch screen + remote control Communication protocol MODBUS RTU
Control switch	Power switch/gear switch/emergency stop switch
Working power supply	Single phase AC220V/50HZ
Voltage display accuracy	The voltage accuracy is ±1% and the voltage resolution is 0.1V.
Current display accuracy	The current accuracy is ±1% and the current resolution is 0.1A.
Display content	Voltage/current/power and other parameters
Insulation class	F-Class
Protection level	IP20 (suitable for indoor use)
Fan noise	60 dB
Cooling method	Forced air cooling: air is sucked in from the bottom and discharged from the top.
How it works	Can work continuously for more than 24 hours.
Protection function	Short circuit protection/over temperature protection/over current protection
External dimensions	1200650750mm (heightwidthdepth)
Weight	140KG
Applicable ambient temperature	-10℃～+50℃
Applicable relative humidity	≤95%
Altitude	≤2500m
Main components
Resistance	It uses alloy resistors with good heat dissipation, small temperature drift and power factor above 0.99.
Related electrical appliances	The default brand is Chint. If there are special needs, the brand can be defined through negotiation.
Product Warranty	One-year warranty and lifetime maintenance.
