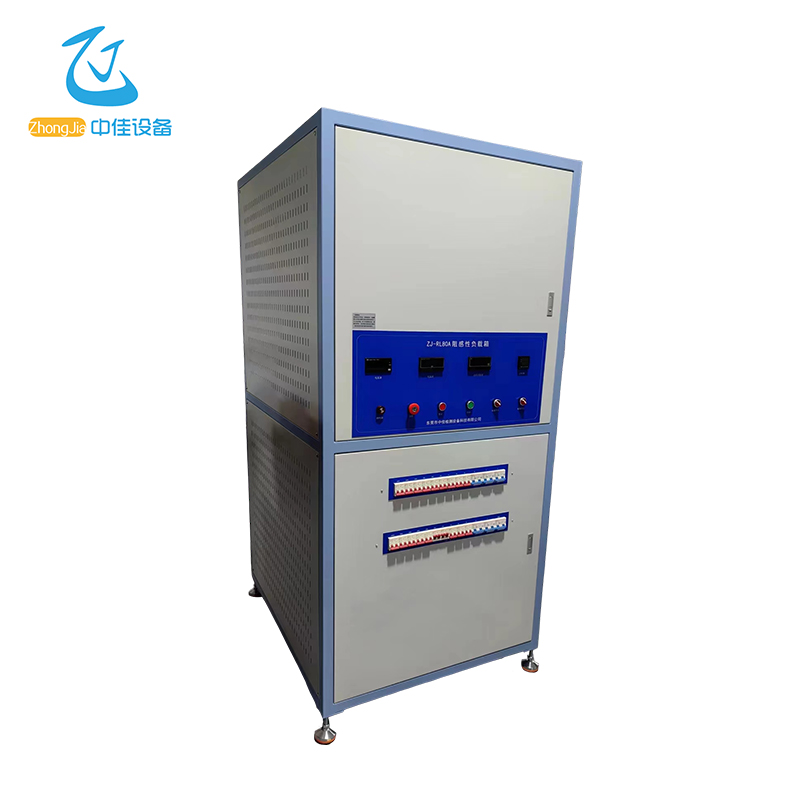

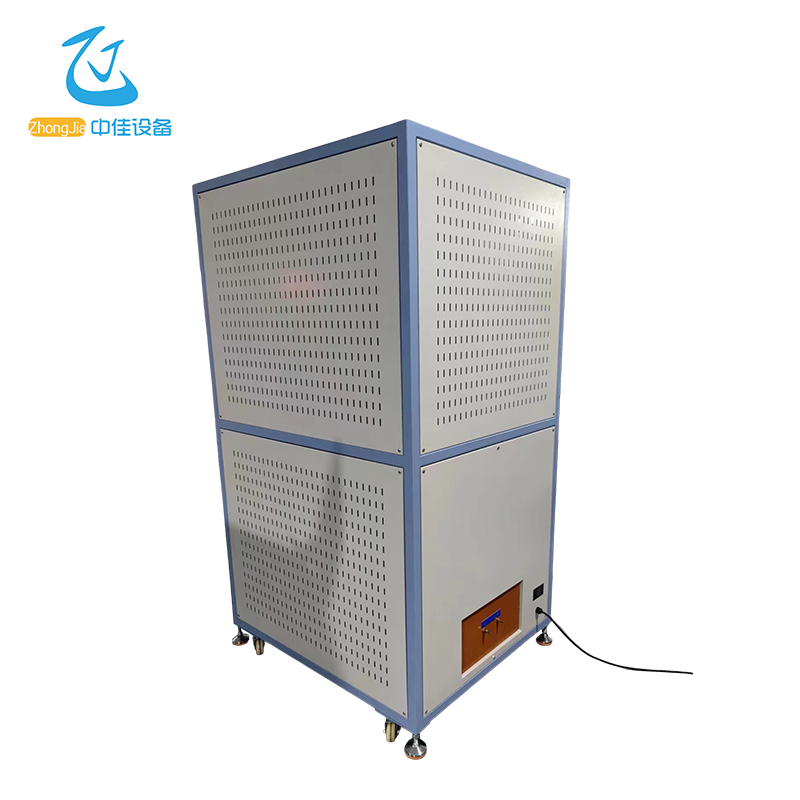

Resistive and Inductive Load Cabinet

ZJ-RL80A
This load cabinet is suitable for testing the load life of electrical appliances such as charging guns, industrial plugs and sockets, couplers, lamps, small appliances, etc. This machine uses high-precision inductors and resistors to control voltage, current, and power factor. the load output mode is resistive load and inductive + resistive load.

Consult

Features
Technical Indicators
Overall Dimension

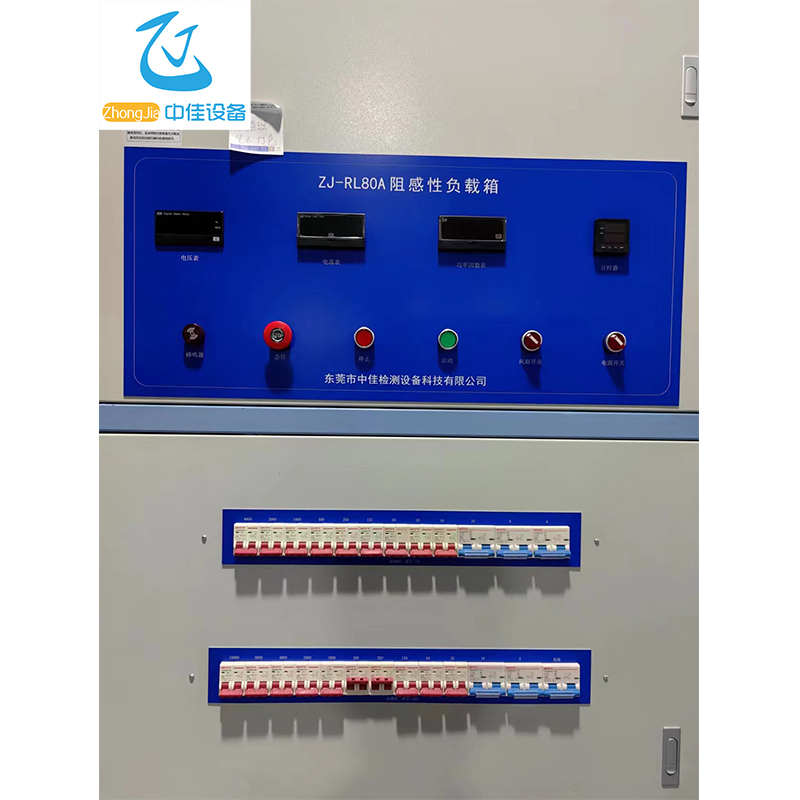

1) Control power input: Single-phase AC 220V +10% 50Hz, 1kVA. 2) Digital display of output voltage, current, and power factor. 3) This device supports two load types: resistive load and inductive + resistive load. 4) This device outputs single-phase, independent loads. 5) Inductive load: a) Under load: Output current: 1-80A (80A above 400V, reduced below 400V). b) Voltage: Adjustable from 220V to 450V (external power supply, user-provided). c) Power factor (PF): Adjustable from 0.5 to 0.96. d) Power factor resolution: 0.01, accuracy: 0.5, digital display. 6) Resistive load: a) Under load: Output current: 1-80 A (80A above 400V, reduced below 400V). b) Voltage: 400V to 450V, adjustable (external power supply, user-provided). c) Power Factor: 1. d) Power Factor resolution: 0.01, accuracy: 0.5, digital display. 7) Ammeter range: 0.1 to 80.0A, resolution: 0.1A, accuracy: 0.5, digital display. 8) Voltmeter range: 0.1 to 500.0V, resolution: 0.1V, accuracy: 0.5, digital display. 9) Timer: Continuously adjustable from 1 to 999999s, automatically shuts off when timer expires. 10) Overload and leakage protection functions. 11) Overall dimensions (mm): Approximately width: 1000, depth: 1000, height: 1800. 12) Overall weight: Approximately 200 kg. 13) Operating temperature: -15°C to 400°C. 14) Relative humidity: (20% to 90%)
